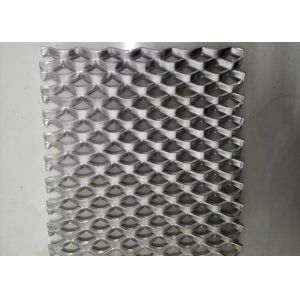

    Diamond Powder Coated Expanded Metal Mesh with 0 . 4 mm - 5 . 0 mm Thickness

    Ask Lasest Price
    Brand Name : YQ
    Model Number : YQ-D08
    Certification : ISD 9001
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 50000 square meters per month
    Delivery Time : 5-15 days
    • Product Details
    • Company Profile

    Diamond Powder Coated Expanded Metal Mesh with 0 . 4 mm - 5 . 0 mm Thickness

    Diamond Powder coated Expanded Metal Mesh with 0 . 4 mm - 5 . 0 mm Thickness


    Common Specification:


    Product name

    Diamond Powder coated Expanded Metal Mesh with 0 . 4 mm - 5 . 0 mm Thickness

    Material

    Stainless steel,thin low carbon steel,brass plate,

    Aluminum plate,titanium plate,nickel plate,Al-Mg alloy plate.

    Thickness0.4-5.0mm
    Hole shapeDiamond,square hole,scale hole,gothic and so on.
    LWD4.5-100mm.
    Surface treatment

    1.Without treatment is ok

    2.Anodized (colour can be customized)

    3.Powder coated

    4. PVDF

    5. Spray painted

    6. Galvanized : Electric galvanized, Hot-dipped galvanized.

    Application

    1.Fence,panels and grids;

    2.Walkways;

    3.Protections and barres;

    4.Industrials and fire stairs;

    5.Metallic walls;

    6.Metallic ceilings;

    7.Grating and platforms;

    8.Metallic furniture;

    9.Balustrades;

    10.Containers and fixtures;

    11.Facade screening;

    12.Concrete stopers

    Characteristics

    1.Continuity--the mesh is formed from a single piece of metal

    2.Environment friendly--no wasteful of material

    3.High strength--higher strength to weight ration then metal sheet

    4.Adherence--anti slip surface

    5.Very good noise and fluid filtration--excludes & retains simultaneously

    6.Good rigidity--premium reinforcement properties

    7.Good conductivity--highly efficient conductor

    8.Screening--practical and effective light filtration

    9.Good resistance to corrosion

    Package

    Pallet or Wooden case with Water Proof Material or as your need.

    Certification

    ISO9001.



    Specification:


    Sheet

    Thickness

    Opening in

    Width(mm)

    Opening in

    Length(mm)

    Stem

    mm

    Roll width

    mm

    Roll Length

    mm

    Weight

    kg/m 2

    0.52.54.50.50.511.8
    0.510250.50.620.73
    0.6102510.621
    0.8102510.621.25
    110251.10.621.77
    115401.5241.85
    1.210251.1242.21
    1.215401.5242.3
    1.515401.51.842.77
    1.523602.623.62.77
    218502.1243.69
    222602.6243.69
    48018042103.0
    340803.8245.00
    45010042211.15
    4.550100522.711.15
    55010051.42.612.39
    650100622.517.35

    8

    50100822.128.26

    with different Shape Patterns:




    Comparison:
